Injection moulding is behind countless plastic parts in your daily life, from the keys on your keyboard to the housing on a medical device. It is everywhere because it can produce the same part again and again with speed and consistency.
It can be expensive to start, but cost-effective to scale. Compared with CNC machining or 3D printing, injection moulding requires more upfront investment because a mould has to be made first. Once that tool is built, though, the cost per part can drop significantly, making it ideal for production runs, bridge tooling, and end-use plastic parts.
That repeatability is exactly why design choices are so critical. A smart design choice can improve thousands of parts. A bad one can create sink marks, warping, cosmetic defects, or tooling headaches just as quickly. Design for injection moulding means thinking about wall thickness, draft, ribs, bosses, gates, material choice, surface finish, and ejection before resin ever hits the mould.
This guide covers the basics of plastic injection moulding, how the process works, common types of injection moulding, and the best practices that help improve part quality.
What is Injection Moulding?
Injection moulding is a manufacturing process for producing finished parts from plastic, elastomeric, or other mouldable materials. In plastic injection moulding, resin is melted, injected into a metal mould cavity, cooled, and ejected as a solid part.
The process is widely used for plastic parts because it can produce consistent results with low material waste and low cost per part. You'll find injection-moulded components across industries such as medical devices, aerospace, automotive, robotics, consumer electronics, and industrial equipment.
Depending on where a part is in development, Konlida can support prototyping, production injection moulding, and on-demand production with no minimum order quantity. Parts can be delivered as fast as one day, depending on the project. Its plastic injection moulding capabilities support parts up to 480 mm by 751 mm by 203 mm. For more detail on draft, radii, wall thickness, and mouldability analysis, see Konlida's guide to injection moulding basics.
How Does Injection Moulding Work?
Injection moulding works in two stages: making the mould and producing the parts. First, a mould is designed and manufactured around the part geometry. The mould includes the cavity that forms the part, along with gates, runners, cooling channels, ejector pins, and any features needed to release the part.
Once the mould is ready, the moulding cycle follows a sequence: clamp the mould, inject molten resin, cool the part, eject it, and repeat. Even in this simple cycle, small design choices can affect fill, cooling, shrink, cosmetics, and repeatability. Konlida's aluminium mould tooling options can support different stages of development, from early validation through production.
Types of Injection Moulding
Different injection moulding processes support different part designs, materials, and production goals.
| Type | Best For | Design Considerations |
|---|---|---|
| Thermoplastic injection moulding | Plastic prototypes and production parts | Material selection, wall thickness, shrink, draft, and part geometry drive mouldability |
| Liquid silicone rubber moulding | Flexible, durable, heat-resistant parts | Useful for seals, gaskets, medical components, and soft-touch applications |
| Overmoulding | Multi-material parts | Requires compatibility between substrate and overmould material |
| Insert moulding | Parts with metal inserts, threaded features, or electrical components | Insert placement, retention, and moulding pressure must be considered early |
| Family and multi-cavity moulding | Multi-part or multi-cavity production runs | Multiple parts moulded together in one tool to reduce cost and lead time |
| Production injection moulding | Higher-volume production | Multi-cavity tooling and production planning can reduce part cost over time |
Design for Injection Moulding: Best Practices
The right approach to injection moulding design helps parts fill, cool, and eject cleanly. Konlida's plastic injection moulding design guidelines can help you pressure-test the details before tooling begins.
Keep wall thickness consistent: Thick sections cool more slowly than thin sections, which can lead to sink, voids, and warping, so follow wall thickness guidelines that keep walls within 40% to 60% of adjacent thickness and inside the recommended range for the selected resin.
Core out unnecessary mass: Cored geometry can reduce cooling variation, sink, part weight, and secondary machining without changing the part's basic function.
Add draft early: Draft helps parts release cleanly from the mould. A common starting point is 1 to 2 degrees, with more draft for textured surfaces. These draft angle guidelines explain how draft affects moulded part quality and mould release.
Use ribs and gussets for strength: Thin supporting features can add stiffness without the sink risk of thick solid sections. A common guideline is to keep ribs around 60% of the wall thickness.
Plan gates and runners around flow and cosmetics: Gate location affects fill, pressure, weld lines, and visible gate marks, so careful gate planning can improve mouldability and reduce cosmetic issues.
Account for ejection and undercuts: Ejector pins can leave marks, while undercuts may require side-actions, pickouts, sliding shutoffs, or design changes.
Use tight tolerances only where needed: Resin shrink, cooling, part geometry, and tool design all affect final dimensions. Konlida's injection moulding process can hold about ±0.076 mm machining accuracy, while shrink tolerance can range from 0.002 mm/mm for stable resins like ABS and polycarbonate to 0.025 mm/mm for less stable resins like TPE. If tight tolerances, complex geometry, or critical features are involved, mould flow analysis can help identify potential issues before tooling.
For a hands-on reference, our Design for Manufacturability Toolkit shows common moulded part features such as thin walls, thick sections, bosses, ribs, and other design details.
Designing Complex Features
Colorants and Resin Additives for Injection Moulding
Stock colours from the resin vendor are typically black and natural. Natural might be white, beige, amber or another colour. Semi-custom colours are created when colourant pellets are added to natural resins. There is no added charge for our inventory colours. They may not be an exact match and may create streaks or swirls in parts.
Resin Additives
Short glass fibres are used to strengthen a composite and reduce creep, especially at higher temperatures. They make the resin stronger, stiffer, and more brittle. They can cause warp due to the difference in cooling shrink between the resin and the fibres.
Carbon fibre is used to strengthen and/or stiffen a composite and also to aid in static dissipation. It has the same limitations as glass fibres. Carbon fibre can make plastic very stiff.
Minerals such as talc and clay are often used as fillers to reduce the cost or increase the hardness of finished parts. Since they do not shrink as much as resins do when cooled, they can reduce warping.
PTFE (Teflon) and molybdenum disulfide are used to make parts self-lubricating in bearing applications.
Long glass fibres are used like short glass fibres to strengthen and reduce creep, but make the resin much stronger and stiffer. The downside is that they can be particularly challenging to mould parts with thin walls and/or long resin flows.
Aramid (Kevlar) fibres are like less-abrasive glass fibres only not as strong.
Glass beads and mica flakes are used to stiffen a composite and reduce warping and shrinkage. With high loading, they can be challenging to inject.
Stainless steel fibres are used to control EMI (electromagnetic interference) and RFI (radio frequency interference) typically in housings for electronic components. They are more conductive than carbon fibre.
UV inhibitor for outdoor applications.
Static treatments make resins dissipate static.
Once the basics are covered, you can build more function into your injection moulding design with features that improve assembly, usability, or part performance.
Clips and Snap Fits
Clips and snap fits can reduce the need for screws, adhesives, and secondary hardware. The trade-off is that they add stress and flex to the design, so you’ll have to carefully consider your material choice. A flexible resin may work well for a snap feature, while a stiff or brittle material may crack. Depending on the geometry, the mould may also need shutoffs, side-actions, or a redesign to release the part cleanly.
Living Hinges
Living hinges are thin, flexible sections of plastic that let two moulded sections bend repeatedly. Polypropylene is often a good material for this because it can flex many times without failing quickly. Keep the hinge thin, consistent, and free of sharp transitions, and consider gate location because resin flow can affect hinge performance.
Bosses and Standoffs
Bosses and standoffs are common in assemblies that use screws, inserts, pins, or locating features. The main risk is making them too thick. Core ou
t solid bosses, support them with ribs or gussets where needed, and keep the surrounding wall thickness as consistent as possible to reduce sink and voids.
Text on Parts
Moulded text needs to be large enough to machine, fill, and eject cleanly. Simple sans serif fonts are usually easiest to mill into the mould. As a general rule, use fonts larger than 20 pt., keep text between 0.25 mm and 0.38 mm deep, and make the smallest stroke at least 0.51 mm wide.

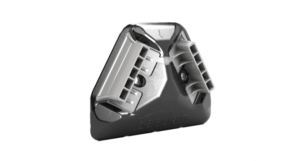

Overmoulding
Overmoulding combines two materials into one part, such as a rigid plastic substrate with a softer grip, seal, or cushion. A successful overmoulded part depends on material compatibility, bonding, and geometry. For multi-material design guidance, see these overmoulding and insert moulding design guidelines.
Common Injection Moulding Defects and Design Fixes
Some moulding defects can be adjusted during production, but many start with the part design. Building in good mouldability from the start can help reduce common injection moulding defects.
| Defect | What It Looks Like | Common Design Cause | Design Fix |
|---|---|---|---|
| Sink marks | Depressions on the surface | Thick walls, heavy bosses, thick ribs | Core out thick areas and use ribs instead of solid mass |
| Warping | Twisted, bowed, or uneven part | Uneven wall thickness, cooling imbalance, high shrink | Use consistent wall thickness and gradual transitions |
| Voids | Internal air pockets | Thick sections that cool unevenly | Reduce thick areas and avoid unnecessary mass |
| Flash | Thin excess plastic at edges or parting lines | Poor shutoff design, difficult parting line | Improve shutoffs and review parting line placement |
| Short shots | Incomplete fill | Thin walls, long flow paths, poor gate location | Improve wall thickness, flow paths, or gate placement |
| Jetting | Wavy or worm-like surface marks | Resin enters too quickly into open space | Adjust gate location or geometry to improve flow |
Our online platform includes manufacturing analysis that can help identify design risks that lead to defects, including thick sections, undercuts, gate locations, and ejector pin placement.
Material Selection for Injection Moulding
The right material depends on what the part needs to do, from strength and flexibility to heat resistance, chemical resistance, shrink, finish, and cost. Colorants and additives can change how a resin moulds, looks, and performs, so factor them into material selection. This injection moulding material selection guide goes deeper on those trade-offs.
| Material Type or Family | Common Examples | Best For | Design Considerations |
|---|---|---|---|
| Thermoplastic commodity resins | PP, PE, PS | Cost-sensitive parts, containers, simple housings | Lower cost, but performance varies by resin |
| Thermoplastic engineering resins | ABS, PC, nylon, acetal/POM, PBT | Functional parts, housings, gears, clips | Better strength, heat resistance, or dimensional stability |
| Thermoplastic high-performance resins | PEEK, PEI, PPS | Thermal, chemical or mechanical demands | Higher cost; may need tighter design review |
| Thermoplastic elastomers | TPE, TPU | Flexible grips, seals, and soft-touch features | Processes like thermoplastics but provide elastomer-like flexibility |
| Liquid silicone rubber | LSR | Seals, gaskets, medical components, and flexible parts | Elastomeric material with different moulding, finish, and release considerations |
Konlida stocks 100+ plastic and elastomeric materials, and additional materials can be sourced by request.

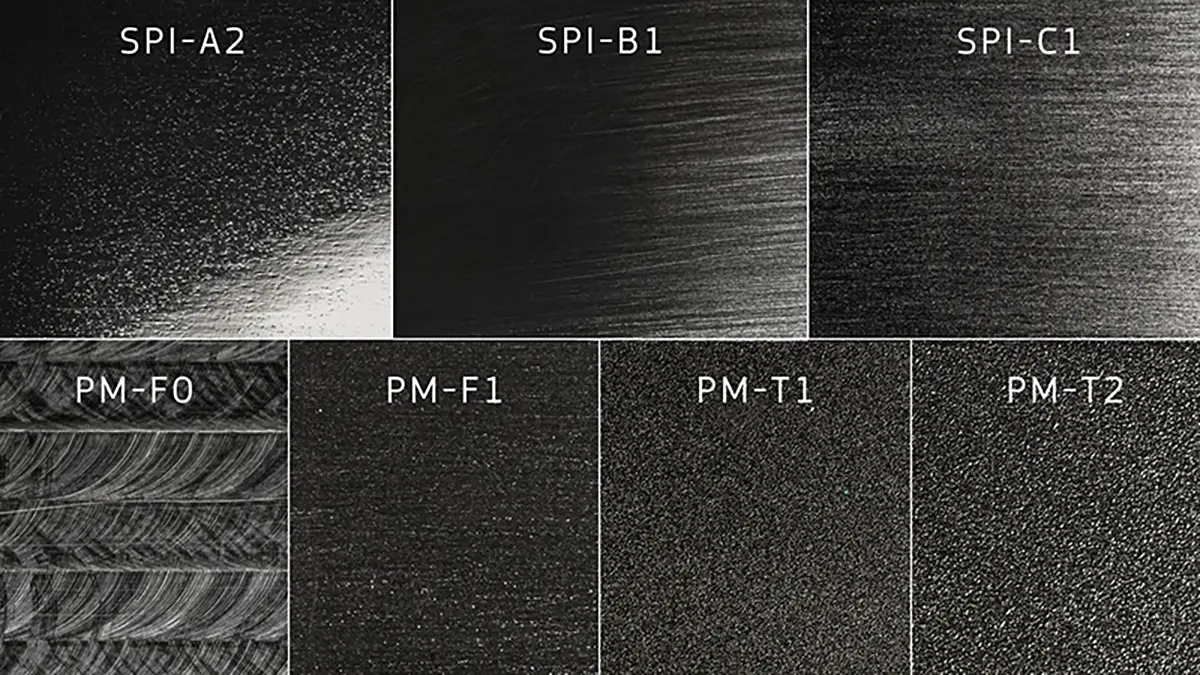

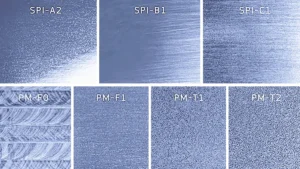

Surface Finishes for Moulded Parts
For standard moulded finishes, the mould surface largely determines the part surface. Polished and bead-blasted finishes are applied to the tool and transferred to the moulded part, so surface finish can affect appearance, draft, material choice, and how easily the part releases from the mould. The guide to injection moulding surface finishes explains the available finish options in more detail.
| Finish Category | Thermoplastic Options | LSR Options | Best For |
|---|---|---|---|
| Non-cosmetic | PM-F0, PM-F2 | PM-F0 | Internal or functional parts where appearance is not critical |
| Low-cosmetic | PM-F1 | PM-F1 | Functional prototypes or less visible surfaces |
| Polished | SPI-C1, SPI-B1, SPI-A2 | SPI-C1, SPI-A2 | Clear, glossy, or cosmetic surfaces. Glass- and mineral-filled resins can show streaking on polished finishes |
| Bead-blasted texture | PM-T1, PM-T2 | PM-T1, PM-T2 | Matte appearance, light-to-medium texture, or hiding minor cosmetic marks. Plan for at least 3 degrees of draft for PM-T1 and 5 degrees for PM-T2 |
For more complex cosmetic textures, Mold-Tech-style finishes can create effects such as pebbled, grained, leather-like, or other patterned surfaces.
If the part has cosmetic requirements, align the finish with the material, colour, geometry, and draft before tooling moves forward. Darker colours tend to show texture more clearly than lighter colours, and this guide to cosmetic appearance on moulded parts goes deeper on finish, material, and colour choices.
Post-Processing and Advanced Moulding Techniques
Some injection-moulded parts need extra steps or tooling features to support assembly, marking, or complex geometry. These secondary operations can add functionality, but they can also affect part design, tooling, cost, and lead time.
Use ultrasonic welding when moulded parts need to be fused together or when inserts need to be driven into plastic with heat and vibration. A welded part may need an energy director, while an insert needs enough surrounding material for support.
Use part marking when a moulded part needs a logo, instructions, or other identification. Pad printing can add colour graphics to compatible resins, while laser engraving burns a permanent 2D image into the part or mould cavity without adding colour.
Use pickouts when interior undercuts cannot be released automatically. They can solve geometry problems, but they can also add more cost and handling than sliding shutoffs or side-actions.
Use steel core pins when the design needs clean holes without draft. Any cosmetic effect is usually hidden inside the hole.
Quality Control and Certifications
Injection moulding quality depends on part design, mould design, material selection, process control, and inspection. At production volumes, quality is about consistency and meeting the same requirements across thousands, or even millions, of units. Konlida uses digital processes, scientific moulding, and inspection reporting to support injection moulding quality at scale.
| Quality Option | What It Helps Confirm |
|---|---|
| First Article Inspection | Initial parts match specified dimensions |
| PPAP | The production process can repeatedly meet requirements |
| Scientific moulding | Process parameters are controlled and repeatable |
| CMM inspection | Critical dimensions are measured accurately |
| CTQ inspections | Features critical to function are checked consistently |
| Material and inspection documentation | Parts meet project, regulatory, or supply chain requirements |
Production is backed by ISO 9001:2015 and ITAR registration, with ISO 13485 available for medical applications.
Prototyping projects come with a Quality Inspection Report (QIR) as a baseline dimensional check. For projects that need more documentation, Konlida's injection moulding inspections include options such as standard inspection, Critical to Quality inspection, and advanced inspection reporting.
Injection Moulding Glossary: Terms to Know
- Boss: A raised feature used for fasteners, inserts, pins, or alignment.
- Core out: Remove unnecessary material from a thick section while keeping the part's function.
- Draft: A slight angle added to vertical walls so the part can release cleanly from the mold.
- Ejector pins: Pins that push the finished part out of the mold after cooling.
- Gate: The opening where molten resin enters the mold cavity.
- Gusset: A support feature that reinforces walls, bosses, or other raised geometry.
- Parting line: The line where the two halves of the mold meet.
- Pickout: A removable mold insert used to form difficult features that cannot release automatically.
- Rib: A thin support feature used to add strength or stiffness without making the whole wall thicker.
- Runner: A channel that carries resin from the injection point to the gate.
- Shutoff: An area where two mold surfaces meet to form a feature, often used to avoid or simplify side-actions.
- Side-action: A moving mold component used to form or release features that are not aligned with the mold opening direction.
- Sink mark: A small surface depression caused by uneven cooling or thick material sections.
- Undercut: A feature that prevents the part from being pulled straight out of the mold.
- Weld line: A visible or structural line where two resin flow fronts meet inside the mold.
Frequently Asked Questions
What makes a part suitable for injection molding?
A good injection-molded part has consistent wall thickness, enough draft, realistic tolerances, and geometry that can release cleanly from the mold.
How can you reduce the cost of an injection-molded part?
You can often reduce cost by simplifying geometry, avoiding unnecessary side-actions, using consistent wall thickness, choosing the right resin, and designing for efficient molding from the start.
What causes warping in injection-molded parts?
Warping is often caused by uneven wall thickness, uneven cooling, material shrink, or geometry that creates internal stress as the part cools.
How much draft does an injection-molded part need?
A common starting point is 1 to 2 degrees of draft, with more draft for textured surfaces or deeper features that need extra help releasing from the mold.
What is the difference between a side-action and a pickout?
A side-action is a moving mold component that automatically slides in and out during each cycle to form or release an undercut feature. A pickout is a removable mold insert that is manually removed after each shot. Side-actions add tooling cost but are faster in production; pickouts are simpler but slower.
When should I use insert molding instead of overmolding?
Use insert molding when you need to embed a component, often metal, into a plastic part for strength, conductivity, or thread integrity. Use overmolding when you want to combine two plastic or elastomeric materials for grip, cushioning, or sealing.
