PEEK Injection Molding
PEEK parts offer high strength, stiffness, and chemical resistance
PEEK, or poly ether ketone, is a high performance thermoplastic with excellent strength and ductility. It’s also FDA compliant for food contact and can be sterilized for medical applications.

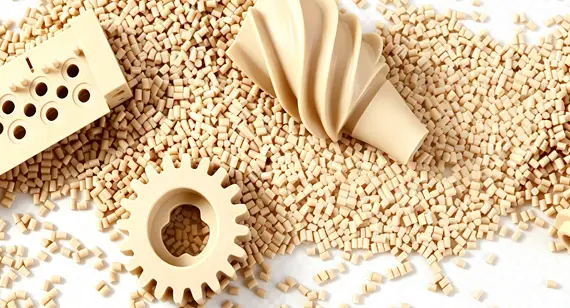

Key benefits
- Good strength and stiffness
- High ductility
- Chemically resistant
- Food safe
PEEK Material Properties
| Tensile Strength (Yield) | Tensile Elongation (Break) | Flexural Modulus | Shore D Hardness | Glass Transition | Melting Point | Data Sheet | |
|---|---|---|---|---|---|---|---|
| Test Method | ISO 527 | ISO 527 | ISO 178 | ISO 868 | ISO 11357 | ISO 11357 | |
| Victrex PEEK 450G | 98 MPa | 45% | 3.8 GPa | 84.5 | Onset: 143°C Midpoint: 150°C | 343°C | VIEW PDF |
Molding Parameters PEEK Parts
- Drying temperature/time: 150°C / 3 hours or 120°C / 5 hours
- Gate: >1mm or .5 x part thickness
- Mold Shrinkage: 1% (ISO294-4)

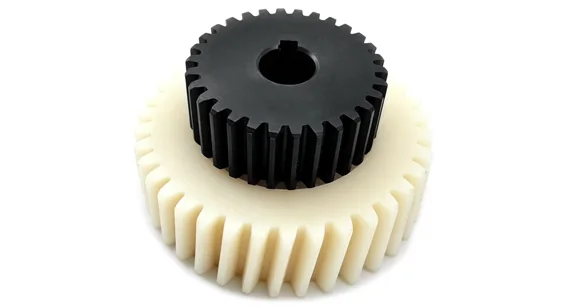

PEEK Applications
Since PEEK is an inert material, it can be used in many applications that require chemical resistance. Industries such as medical, oil and gas, and aerospace often turn to PEEK for plastic parts.
PEEK is often used for the follow parts:
- Bearings
- Gears
- Surgical instrumentation
- Manifolds
- Medical implants
