PBT Injection Molding
PBT resin offers excellent processability, electrical properties, and good surface finish quality
Polybutylene terephthalate (PBT) is semi-crystalline thermoplastic with excellent processibility and good mechanical properties, which make it a versatile general purpose resin for wide range of applications.
We offer three grades of PBT through our injection molding service:
- Valox 357: A polycarbonate/PBT blend that is a general purpose resin. It also has flame retardant with a UL V0 and 5VA rating.
- Valox 420 SEO (30% Glass Filled): A glass-filled PBT resin with flame retardant and well rounded mechanical properties.
- Crastin S600F20: Friction and wear resistance with excellent colorability.
PBT Material Properties
| Tensile Strength (Yield) | Flexural Modulus | Tensile Elongation (Break) | Rockwell Hardness (R-scale) | Data Sheet | |
|---|---|---|---|---|---|
| Test Method | ISO 527 | ISO 178 | ISO 527 | ASTM D785 | |
| Valox 357 | 7,250 psi | 290,000 psi | 30% | 117 | VIEW PDF |
| Valox 420 SEO | 17,400 psi | 1.38E+6 psi | 1.9% | 119 | VIEW PDF |
| Crastin S600F20 | 7,980 | 319,000 psi | 40% | n/a | VIEW PDF |
PBT Applications
PBT resins are used for a wide range of applications due to its well-rounded mechanical properties.
- Enclosures
- Switches
- Electrical components
- Bobbins
- Automotive parts
Related Resources
VALOX 357 Boasts Strong Chemical, Heat Resistance for Plastic Parts
The Polybutylene Terephthalate's strong resistance, stability, and process ability make it a versatile plastic useful in a variety industries.

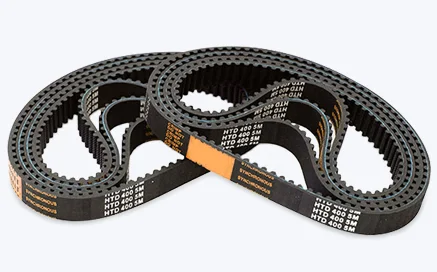

Selecting the Right Plastic for Your Next Molded Part
Learn the key characteristics of common injection molding materials and recommended applications.

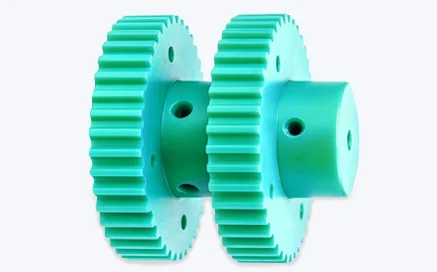

Material Alternatives for Plastic Injection Molding
During shortages, use these substitutes for ABS, PC,PP, and other commonly molded thermoplastics.

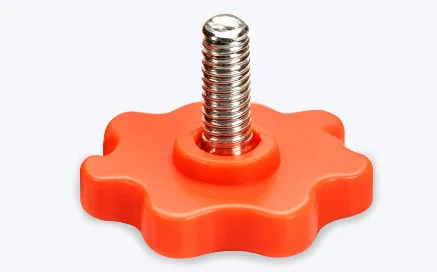

Injection Molding Surface Finishes
