Acetal (POM) Injection Molding
Acetal, or POM, provides excellent strength, stiffness, and creep resistance
Acetal or Polyoxymethylene (POM) is a high-performance thermoplastic well-suited for a wide range of applications due to its wear characteristics. The material offers excellent strength, stiffness, and creep resistance. We offer various grades of acetal for injection molding, including:
- Celcon M90
- 10% Glass Filled Acetal
- 20% Glass Filled Acetal
Compare Material Properties of Molded Acetal
| Tensile Strength ASTM D648 | Flexural Modulus ASTM D790 | Impact Strength, Izod ASTM D256 | Heat Deflection ASTM D648 | Data Sheet | |
|---|---|---|---|---|---|
| Celcon M90 | 9,570 psi | 377 ksi | 1.31 ft-lb/in | 230.0 F | View PDF |
| RTP 800 GB 10 (10% Glass-Filled Acetal) | 11,500 psi | 550 ksi | 1.0 ft-lb/in | 270.0 F | View PDF |
| RTP 800 GB 20 (20% Glass-Filled Acetal) | 14,000 psi | 850 ksi | 1.2 ft-lb/in | 310.0 F | View PDF |

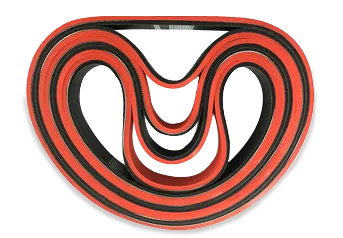

Material Alternatives for Plastic Injection Molding
Navigating supply chain issues is a constant challenge, especially in times of material shortages. To help, we created a detailed guide to resin substitutes for commonly molded thermoplastics.
Acetal or POM Injection Molding Applications
Acetal’s strength and durability makes it a good resin choice for mechanical components such as:
- Gears
- Bearings
- Bushings
- Belt feeds and guides
- Rollers
- Fasteners
- Automotive parts
Related Resources

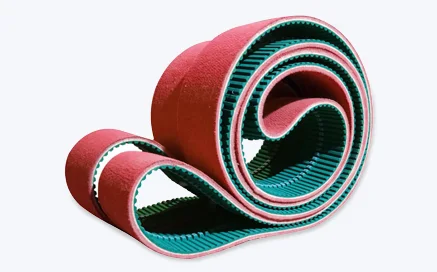

UL 94 Classification and Flame-Retardant Materials
An overview of materials with flame-retardant characteristics and the UL 94 classification.

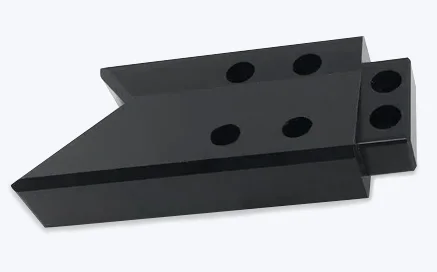

Injection Molding Guide for Plastic Parts
Learn injection molding basics, process steps, design tips, materials, and quality checks.
Selecting the Right Plastic for Your Next Molded Part
Learn the key characteristics of common injection molding materials and recommended applications.

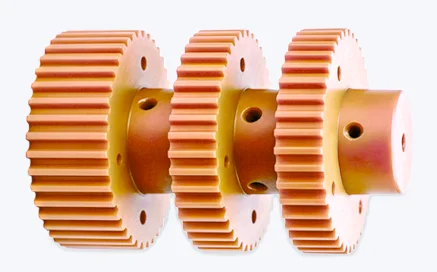

Draft Angle Guidelines for Injection Molding
