Plastic CNC Machining Service
Get machined plastic prototypes and production parts.
We stock a variety of thermoplastic materials for machined prototypes and production parts.

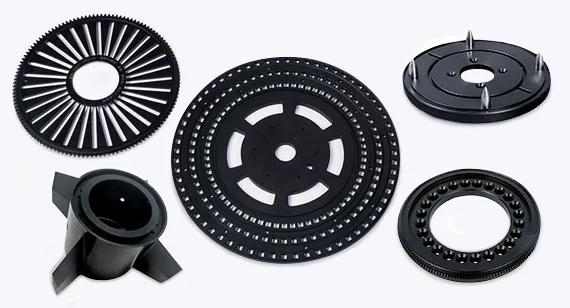

Available Machined Plastic Options:
|
Machined Plastic Material Properties
| Plastic Material | Description | Tensile Strength | Impact Strength | Heat Deflection |
|---|---|---|---|---|
| ABS | Low-cost engineering grade plastic. Easy to machine and offers dimensional stability. | 6,100 psi | 2.7-7.7 ft-lbs/in | 203-214° F |
| ABS-Flame Retardant | Flame retardant benefits with slightly lower tensile strength and heat deflection than standard ABS | >5,500 psi | 4 ft-lbs/in | 194° F |
| Acetal 20% Glass Filled / Delrin 570 | 20% glass-filled fiber with high stiffness and excellent performance at elevated temperatures | 8,500 psi | 0.8 ft-lbs/in | 316-345° F |
| Acetal Copolymer | High strength and stiffness. Low moisture absorption | 8,800 psi | 1.0 ft-lbs/in | 230-316° F |
| Acetal Homopolymer / Delrin 150 | High tensile strength, creep resistance, and overall toughness | 9,000 psi | 1.5 ft-lbs/in | 257-336° F |
| Acetal Static Dissipative / Tecaform SD | Excellent bearing and wear properties. Good for components that will undergo friction or fluid flow contact | 6,600 psi | 1.8 ft-lbs/in | 190° F |
| CPVC | High heat and corrosion resistant. Self extinguishing and flame spread of less than 20 | 7,300 psi | 9 ft-lbs/in | 198° F |
| HDPE | Impact resistant, tensile strength, and chemical and corrosion resistant | 4,600 psi | 1.3 ft-lbs/in | 176° F |
| LDPE | More flexible than HDPE. Easy to machine and offers chemical and corrosion resistance. | 1,700 psi | No Break | 160° F |
| Nylon 6 | Excellent bearing and wear properties. Good overall mechanical properties | 10,000 psi | 0.6 ft-lbs/in | 200-370° F |
| Nylon 6/6 | Outstanding wear resistance and frictional properties. Poor dimensional stability | 10,000 psi | 1.1 ft-lbs/in | 194-455° F |
| Nylon 6/6 30% Glass Filled | High heat deflection combined with superior wear and abrasion resistance. | 12,000 psi | 1.0 ft-lbs/in | 482-490° F |
| Polycarbonate (PC) | Natural transparency with high impact strength | 8,000-9,500 psi | 2.0-16.0 ft-lbs/in | 270-280° F |
| Polycarbonate (PC) 20% Glass Filled | Higher tensile and and temperature properties than unfilled PC | 16,000 psi | 2.06 ft-lbs/in | 298° F |
| PEEK | Good material option when thermal, chemical, and combustion properties are required | 14,000 psi | 1.55 ft-lbs/in | 285-482° F |
| PEI / Ultem 1000 | Translucent amber in color. | 15,200 psi | 1.0 ft-lbs/in | 392-410° F |
| PEI 30% Glass Filled / Ultem 2300 | High heat resistance and retains tensile properties at elevated temperatures | 24,500 psi | 1.6 ft-lbs/in | 414° F |
| PET | Excellent wear resistance, high flexural modulus, and is a good electrical insulator | 11,500 psi | 0.6 ft-lbs/in | 175-240° F |
| PMMA / Acrylic | Rigid thermoplastic with UV stability and transparency | 10,809 psi | 6.8 ft-lb/in² | 185-212° F |
| Polypropylene Copolymer | Versatile, all-purpose thermoplastic that is easy to machine and low cost. More pliable than homopolymer | 4,200 psi | 1.2 ft-lbs/in | 96-195° F |
| PP Homopolymer | High strength-to-weight ratio and good performance in thermoforming and corrosive environments | 4,800 psi | 1.2 ft-lbs/in | 210° F |
| PPE+PS / Noryl 265 | Exceptional dimensional stability. Good choice for housings due to insulating properties and flame resistance | 9,200 psi | 3.5 ft-lbs/in | 254-279° F |
| PPSU / Radel R 5500 | Excellent hydrolytic stability and toughness. Good thermal stability and flame retardent | 10,100 PSI | 13 ft-lbs/in | 428° F |
| PSU / Polysulfone | Transparent plastic with chemical and high temperature resistance. Can operate in an autoclave environment | 10,200 PSI | 1.3 ft-lbs/in | 345-358° F |
| PTFE / Teflon | Excellent chemical resistance and unmatched coefficient of friction | 2,900-5,076 PSI | 2.0-6.0 ft-lbs/in | 500° F |
| PVC | Best choice for chemical resistance. Relatively low cost material as well | 7,820 PSI | 0.8 ft-lbs/in | 162-172° F |
| UHMW | No moisture absorption and self lubricating. Retains physical properties down to -30℃ | 5,800 PSI | No Break | 116° F |
Design Guidelines for Plastic CNC Parts
View our guidelines for CNC milling, which include maximum part sizes by material, minimum dimensions, and recommendations for threading and text.
Related CNC Machining Resources
CNC Machining Materials
With a universe of metal and plastic options, let your machined parts function determine material.

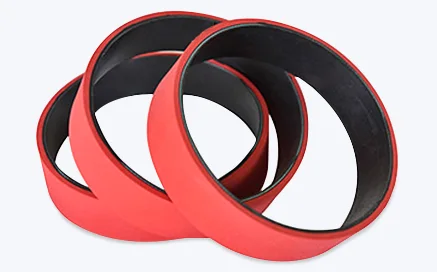

How to Reduce CNC Machining Costs
