ABS Injection Molding
High heat resistance, strength, durability, and low cost make ABS a versatile material for plastic parts
Our injection molding ABS materials are opaque thermoplastics available in black and natural color options. The best material option will depend on your specific project needs. We offer various grades of ABS for injection molding, including:
- Polylac
- Cycolac
- RTP

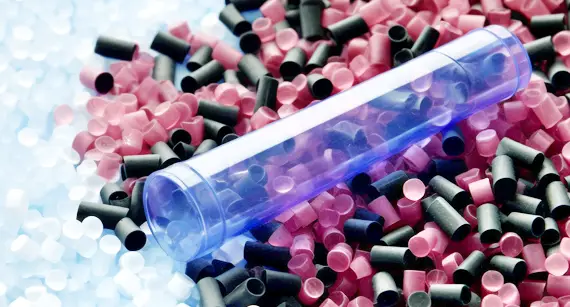

ABS Molding Design Guidelines
| Maximum Part Size | 18.9 in. x 29.6 in. x 8 in. (480mm x 751mm x 203mm) |
| Maximum Volume | 59 cu. in. (966,837mm) |
| Recommended Wall Thickness | 0.045 in. - 0.140 in. (1.143mm - 3.556mm) |
| Tolerances | +/- 0.003 in. (0.08mm) with an included resin tolerance that can be greater than but no less than +/- 0.002 in./in. (0.002mm/mm) |
Compare Material Properties of ABS Materials
Acrylonitrile butadiene styrene (ABS) is a tough, impact-resistant plastic. Its low shrink, high dimensional stability, and good resistance to corrosive chemicals make it a versatile option used across a variety of industries. ABS has a glass transition temperature of approximately 221 °F (105 °C) and is an amorphous polymer, meaning it has high temperature resistance and no true melting point.
| Tensile Strength ASTM D648 | Elongation ASTM D648 | Hardness (R-Scale) ASTM D785 | Heat Deflection | Data Sheet | |
|---|---|---|---|---|---|
| Polylac PA-746 | 40.6 MPa | 30% | 118 | 82. 0 C - 96.0 C | View PDF |
| Polylac PA-765 | 38.1 MPa | 15% | 100 | 73.0 C - 83.0 C | View PDF |
| Cycolac MG47 | 44.0 MPa | 15% | 112 | 80.0 C - 94.0 C | View PDF |
| RTP 605 (30% GF) | 97 MPa | 1% - 2% | N/A* | 93 C | View PDF |
*Resin has not been tested for this property

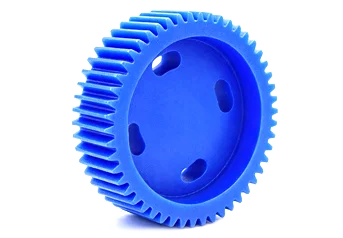

Material Alternatives for Plastic Injection Molding
Navigating supply chain issues is a constant challenge, especially in times of material shortages. To help, we created a detailed guide to resin substitutes for commonly molded thermoplastics.
Key Benefits of Our ABS Grades
We offer several grades of ABS to meet the needs of applications in a variety of industries, including medical and automotive.
Polylac PA-746
- Flame Rated
- RoHS Compliant
- High Flow
- Impact Resistant
Polylac PA-765
- Flame Retardant
- RoHS Compliant
- High Flow
RTP 605 (30%GF)
- Glass filled
- High tensile strength
- Stiffness
Cycolac MG47
- Multi-purpose
- Balance properties
ABS is a versatile thermoplastic often used in automotive, medical device, and consumer applications.
ABS Injection Molding Applications
The material properties of ABS make it a good choice when impact resistance, strength, and stiffness are required. A few key applications include:
- Cosmetic parts
- Enclosures
- Handheld devices
- Housings for electrical tools, remote controls, computers, and telephone components
ABS is also widely used in prototyping because it is relatively inexpensive and has excellent dimensional stability for product testing.
Related Resources
UL 94 Classification and Flame-Retardant Materials
An overview of materials with flame-retardantcharacteristics and the UL 94 classification.
Thermoplastic Material Selection forInjection Molding
Learn how to select the right material for your injection molding design with this technical overviewof thermoplastic resins.

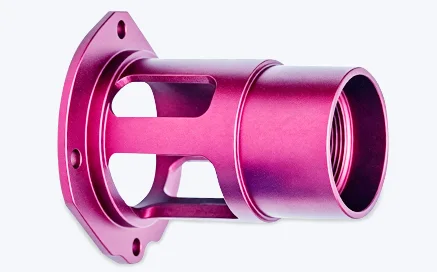

Selecting the Right Plastic for Your Next Molded Part
