LCP Injection Molding
Liquid crystal polymer is a high-performance engineering thermoplastic that provides excellent heat resistance and mechanical properties.

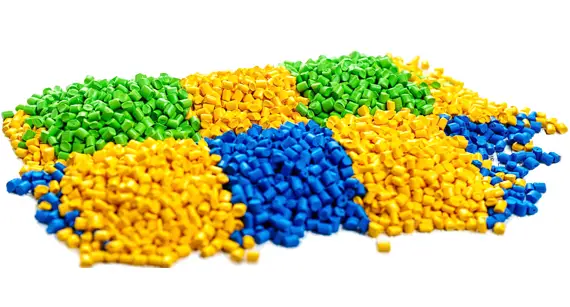

What is LCP or Liquid Crystal Polymer?
Liquid crystal polymer (LCP) materials have high temperature capability and flow easily. It is especially well-suited to applications that require very thin walls. Vectra E130i is a glass-filled LCP that is exceptionally flame retardant and has a high tensile strength and modulus, making it a solid choice for structural applications. Beyond that, it offers good chemical resistance to a variety of acids, bases, and solvents.
ABS Molding Design Guidelines
| Tensile Strength | Tensile Modulus | Hardness (Rockwell-M) | Impact Strength (notched) | Flammability | |
|---|---|---|---|---|---|
| Test Method | ISO 527 | ISO 527-1 | ISO 2039-2 | ISO 180/1A | UL94 |
| Vectra E130i | 21.8 KSI | 2320 KSI | 71 | 13 ft-lbs/sq. in. | V-0 @ 0.008 in. |
| Tensile Strength | Tensile Modulus | Hardness (Rockwell-M) | Impact Strength (notched) | Flammability | |
|---|---|---|---|---|---|
| Test Method | ISO 527 | ISO 527-1 | ISO 2039-2 | ISO 180/1A | UL94 |
| Vectra E130i | 150 MPa | 15996 MPa | 71 | 17.63 J/m2 | V-0 @ 0.2mm |
Key Benefits of PEI
- Capable of thin-wall molding
- Chemical resistance
- Dimensional stability and mechanical strength
- Flame retardancy
- Strong heat resistance
Applications for PEI Injection Molding
- Automotive
- Consumer goods
- Electrical
- Industrial components
- Medical devices
- Sporting goods
